GENERATOR MODEL: EM-4T
MOQ: 1set
Payment: T/T, L/C,Credit Card
Shipment: 30 days for production or 3days for stock
Package Instruction：Foam film wrapping/Export wooden box
Customized Service: Support(Trailer Style, Color, Logo ...)
Qualification: ISO9001,CE, SASO
Warranty: 1 year / 1200 running hours
GENERATOR SET SPECIFICATIONS
| Gensets | Customization | Option | ||
|---|---|---|---|---|
| Rated Power | 100KW-400KW | Engine Brand | CUMMINS/ISUZU/WEICHAI/YANGDONG... | Trailer Style |
| Standby Power | 125KW-440KW | Alternator Brand | Stamford/ Leroy Somer/Marathon... | Remote Control |
| Frequency | 50Hz/60Hz | Voltage | 110V-660V | Charger |
| Speed | 1500/1800 RPM | Control Panel | Smartgen/Deep sea... | Jacket Heater |
| Fuel | Diesel | Fuel Tank Volume | According To Requirements | Oil Heater |

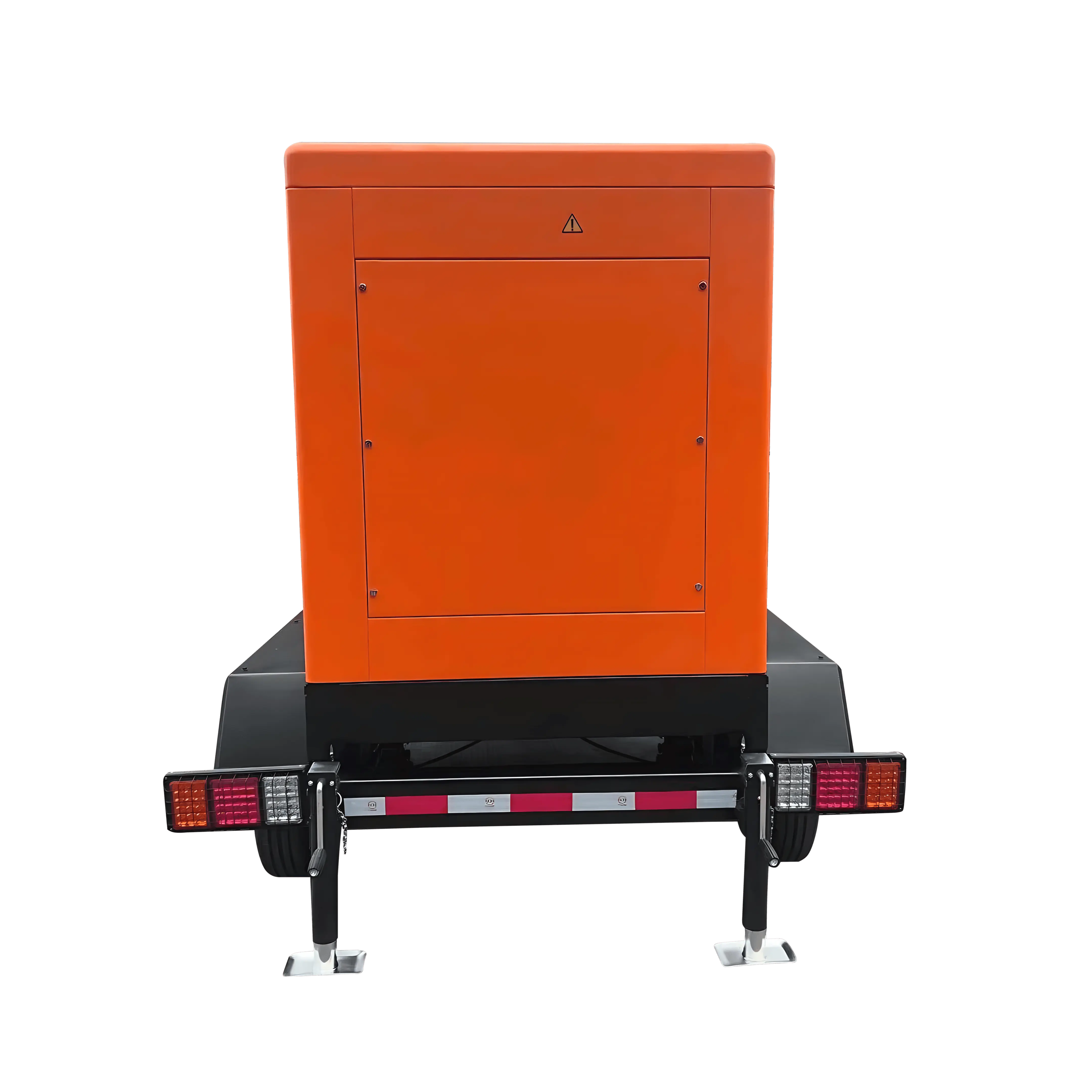

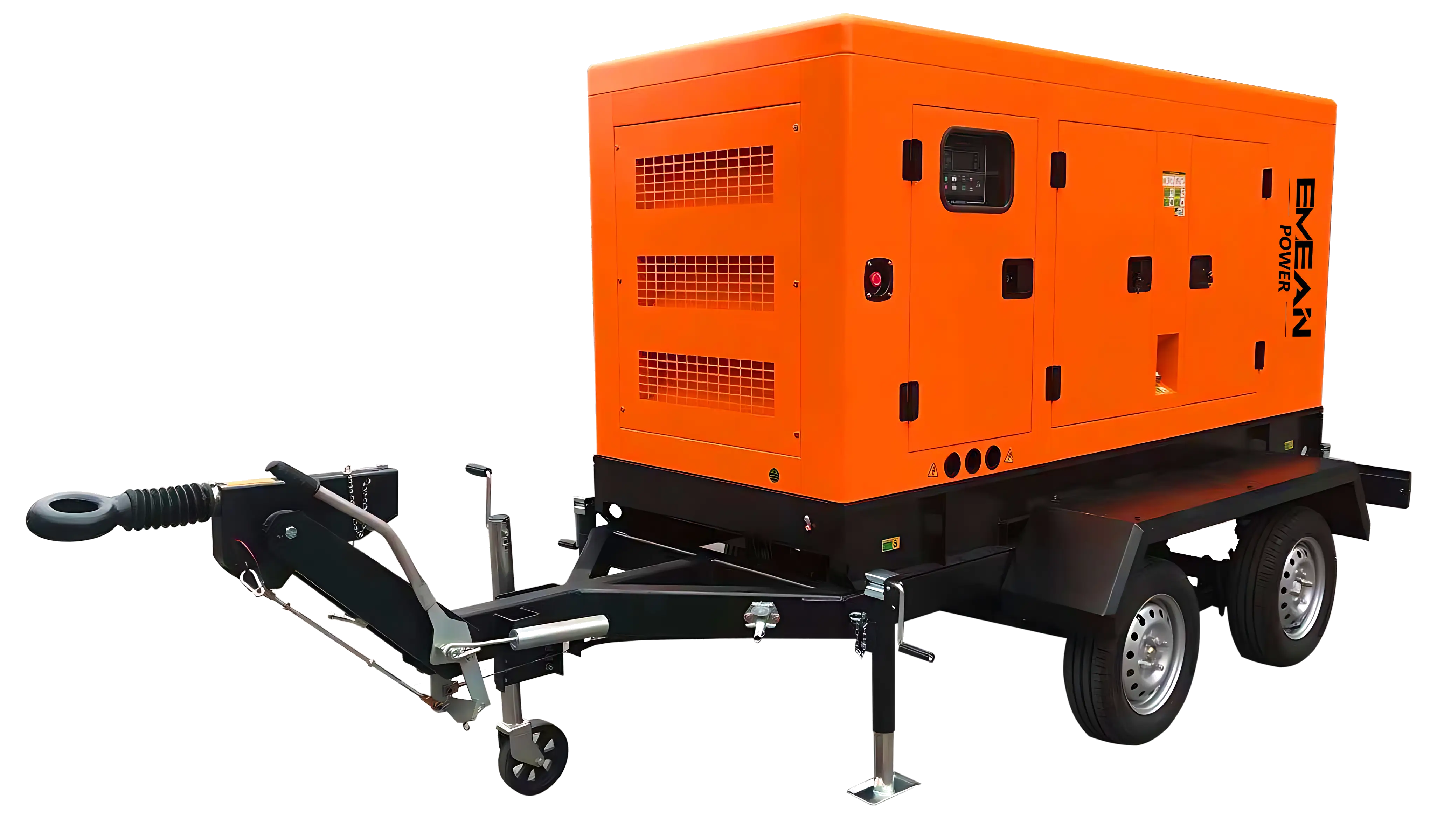

For construction contractors, if there is a need for power supply in mining areas or remote areas, or if you have multiple construction sites and other places that require on-site power generation, mobile generator sets with trailers are an ideal choice.
EMEAN POWER has created a wide variety of trailer solutions, with a variety of connectors for you to choose from, such as fixed connectors, European connectors, special type connectors, etc., which can transform your fixed generator set into a mobile power source.
FEATURES
1.Power by Brand new water cooled diesel engine
2.Brushless alternators (Class H, with AVR)
3.Working condition: 0℃～+40℃ (Antifreeze system needed if below 0℃)
4.Base frame fuel tank for continue 8-10hrs running
5.Digital control panel with auto protection
6.MCCB air circuit breaker for over current shutdown
7.Industrial silencer for silent type generator sets
8.Humanized design, simple operation, easy maintenance
9.Ventilation parts are designed with modular principles
10.Soundproof canopy which lined with sound reducing foam
11.All metal canopy parts are painted by powder foam
12.Glass Panel window
13.Lockable doors on front and back side for easy maintenance
14.Easy maintenance and operation
15.Easy lifting and moving, there is forklift hooks and crane holes on chassis
16.External emergency stop button
17.Steel chassis and anti-vibration pads
18.Includes diesel level sensor information to the controller

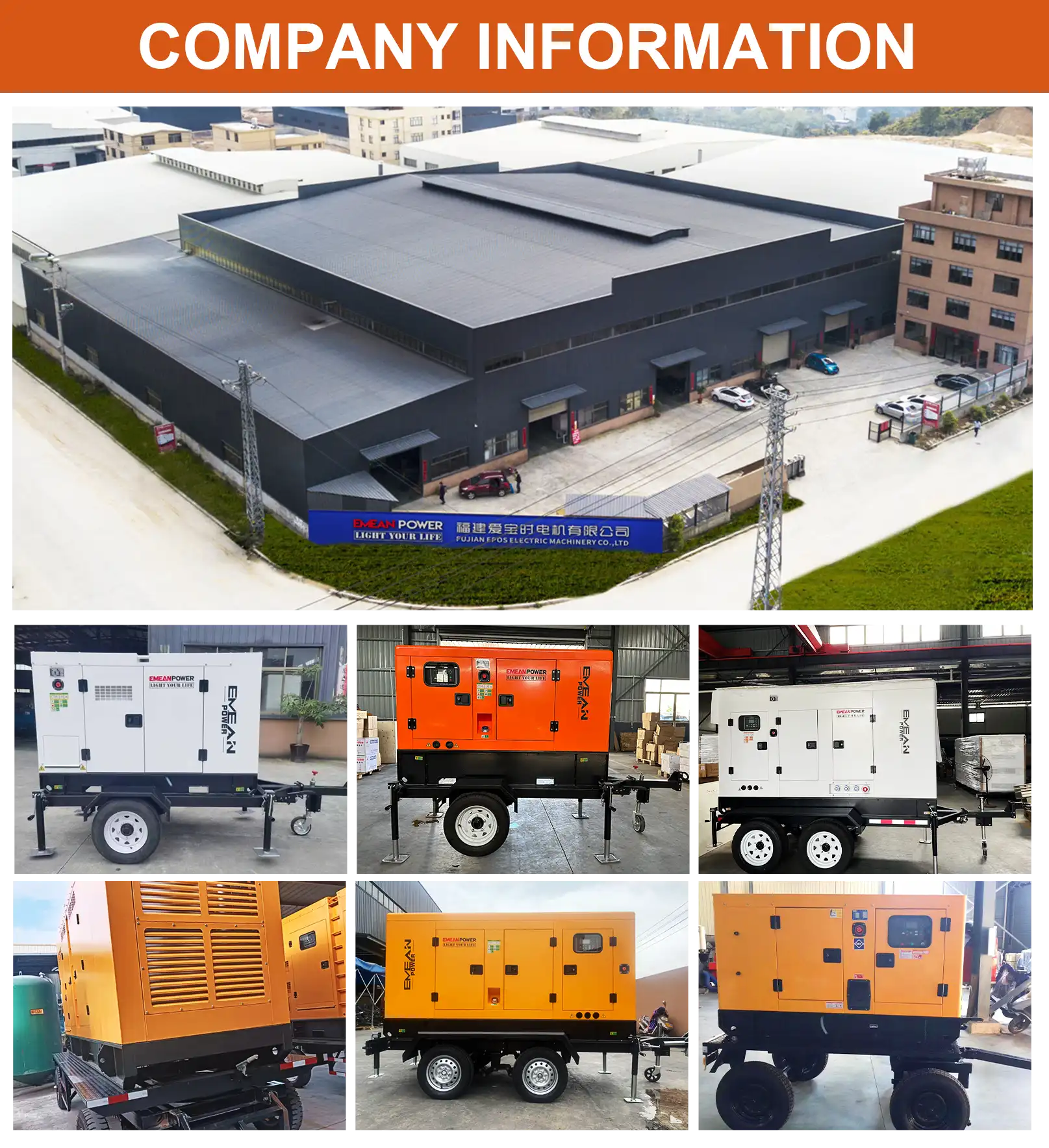

EMEAN POWER is a well-established enterprise with three subsidiaries: Fuzhou Emean Electric Machinery Co., Ltd., Fujian Epos Electric Machinery Co., Ltd.and Fujian Epos Technology Co., Ltd. Currently, we have two factories and one factory under construction.
To date, we have established cooperative relationships with more than 10,000 customers, and our business covers more than 100 countries and regions around the world.

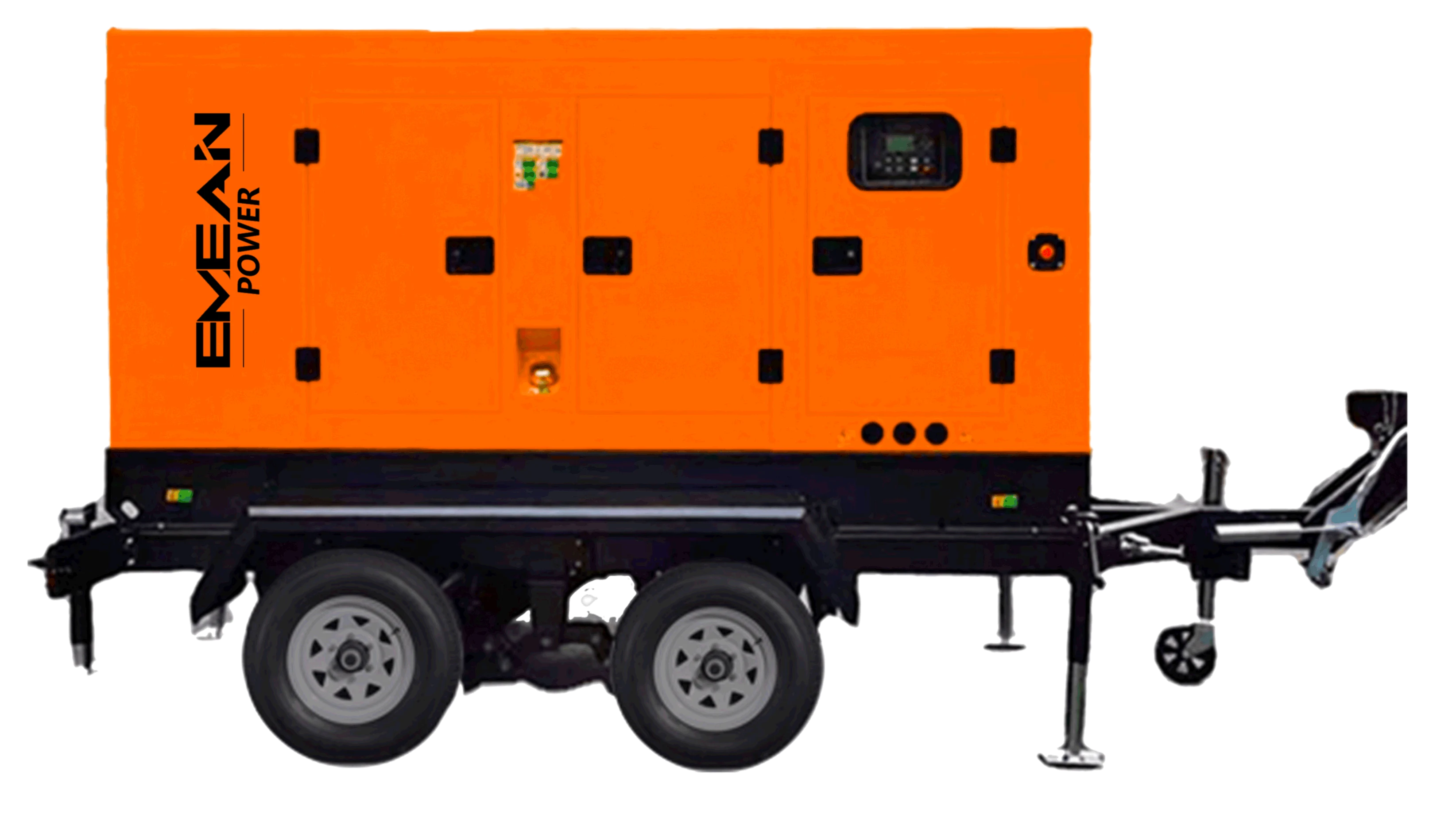

MOBILE GENERATOR WITH FOUR-WHEEL TRAILER POWER RANGE: 100KW - 400KW
| NO | Generator Trailer Styles | Configuration | Bearing Surface Size （L*W) | Photo |
|---|---|---|---|---|

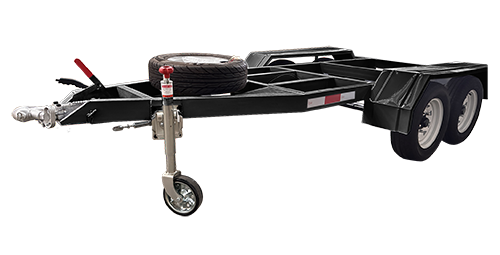

| 1 | Four-wheel Trailer | Dual-axle, four-wheel (13" tire), front support guide wheel, fixed traction mechanism, leaf spring, 4 support legs, brake system (manual parking), reflective strip | 2000*900MM |
|
| 2050*950MM | ||||
| 2150*920MM | ||||
| 2150*1000MM | ||||
| 2300*1050MM | ||||
| 2600*1130MM | ||||
| 2700*1050MM | ||||
| 2750*1050MM | ||||
| 2800*1050MM | ||||
| 2800*1100MM | ||||

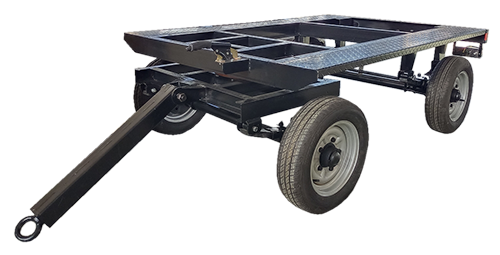

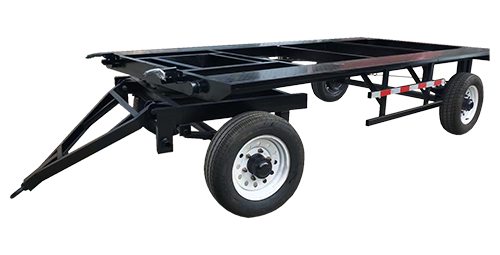

| 2 | Four-wheel Trailer | Dual-axle, four-wheel (13" tires), turntable traction mechanism, leaf spring, brake system (manual parking), reflective strips | 2900*1060MM |
|
| 3000*1080MM | ||||
| 3100*1050MM | ||||
| 3400*1200MM | ||||
| 4000*1300MM | ||||
| 4200*2000MM | ||||

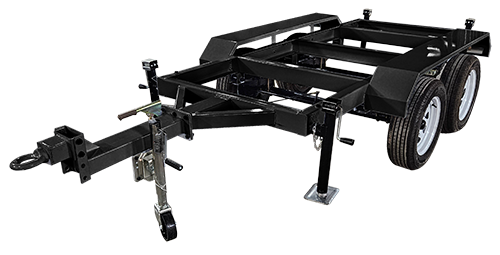

| 3 | Four-wheel Trailer | Dual-axle, four-wheel (13" tires), front support guide wheel, up and down adjustment traction mechanism, leaf spring, brake system (manual parking), reflective strip | 2180*910MM |
|
| 2300*1050MM | ||||

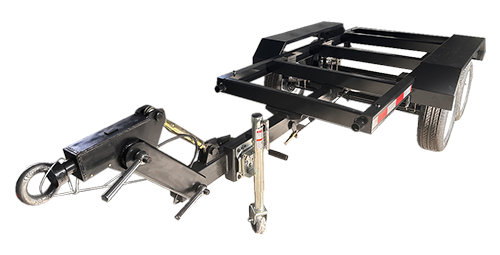

| 4 | Four-wheel Trailer | Dual-axle, four-wheel (13" tires), front support guide wheel, special traction mechanism, leaf spring, brake system (manual parking), reflective strips | 2300*1050MM |
|
| 5 | Four-wheel Trailer | Dual-axle, four-wheel (13" tires), turntable traction mechanism, leaf spring, brake system (manual parking), reflective strips | 2300*1000MM |
|

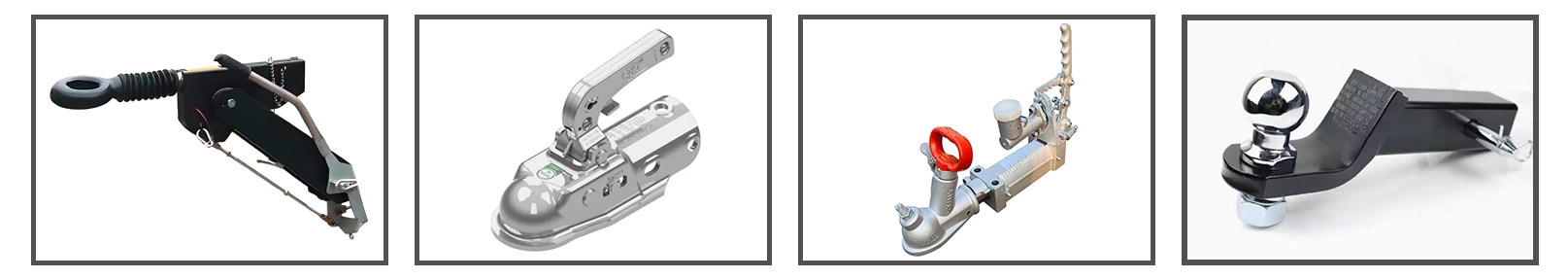

Optional Connector
Up & Down Adjustable Connector | European Style Connector | Special Connector | Tow Ball Connector |
|---|
Packaging Type
Rope Binding | Plywood Box Packaging | Foam Film Wrapping |
|---|
We use advanced full welding technology to carefully weld the plates to ensure that the welds are firm and tight without any gaps. We use thickened plates to enhance the overall firmness and stability. The bending arc is extremely natural and smooth without any sense of stiffness. All rounded corners are smooth and flat, with a delicate touch, showing extremely high craftsmanship and exquisite quality.
EMEAN POWER has more than ten years of production experience and has accumulated a wide variety of generator set styles and shapes. In addition, styles and color can be customized according to customer needs.
